How works replication in a 3 node cluster?

Evidian SafeKit provides a 3 node cluster with replication and failover on Windows and Linux. This feature is an extension of a mirror cluster with replication of data on a third server supposed to be in a Disaster Recovery site (DR Site).

Windows File Replication and Windows Clustering between 3 Servers Architecture

How to implement replication in a 3 node cluster?

2 SafeKit modules are required for implementing replication in a 3 node cluster : the application module and the spare module.

The application module works between server 1 and server 2 as a standard mirror module with

  • synchronous or semi-synchronous real-time replication of application directories,
  • when server 1 fails, automatic application failover to server 2,
  • when server 1 restarts, automatic failback with reintegration of directories

With the semi-synchronous real-time replication between server1 and server2, the application does not wait the acknowledgement of server3 before restarting its execution.

The other module (named the spare module) makes the real-time replication to the DR site.

Windows File Replication and Windows Clustering between 3 Servers Implementation

How to install a 3 node cluster with replication and failover?

An application module named 3nodesrepliv2.safe has been developed as an extension of the mirror module to simplify the installation. And the SafeKit web console helps in the deployment of this module on 3 servers.

Windows File Replication and Windows Clustering between 3 Servers Installation 1

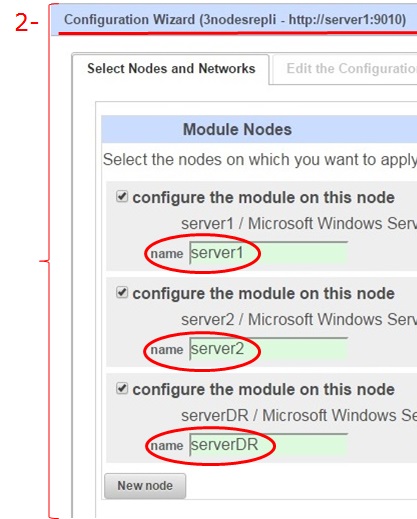

In the configuration wizard of 3nodesrepliv2.safe, the identity of the 3 servers are entered.

Windows File Replication and Windows Clustering between 3 Servers Installation 2

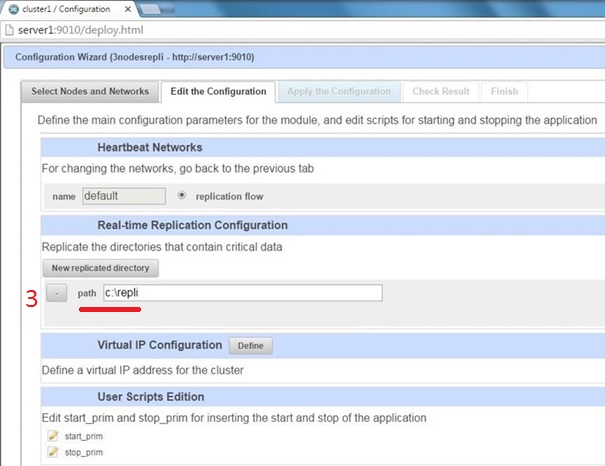

In the configuration, the path of the directory to replicate is set.

Windows File Replication and Windows Clustering between 3 Servers Installation 3

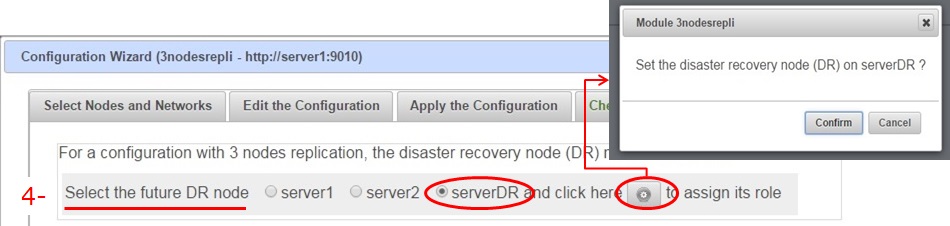

Among the 3 servers, the server in the disaster recovery site must be identified.

Windows File Replication and Windows Clustering between 3 Servers Installation 4

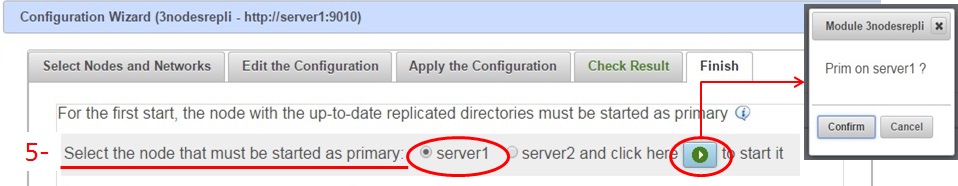

The first time, the server with the up-to-date data must be identified in order to synchronize data in the right way.

Windows File Replication and Windows Clustering between 3 Servers Installation 5

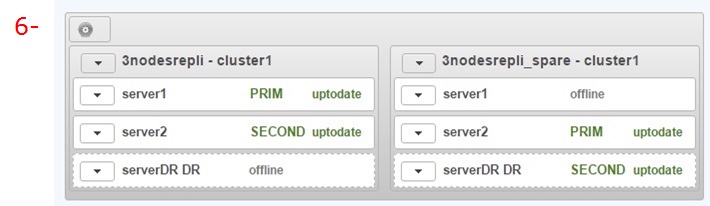

Finally, the system is high available
  • with automatic restart of the critical application thanks to the application module (named 3nodesrepli in the picture)
  • with a real-time replication of data on the third node thanks to the spare module (named 3nodesrepli_spare in the picture).

Windows File Replication and Windows Clustering between 3 Servers Installation 6

Failover to the disaster recovery site

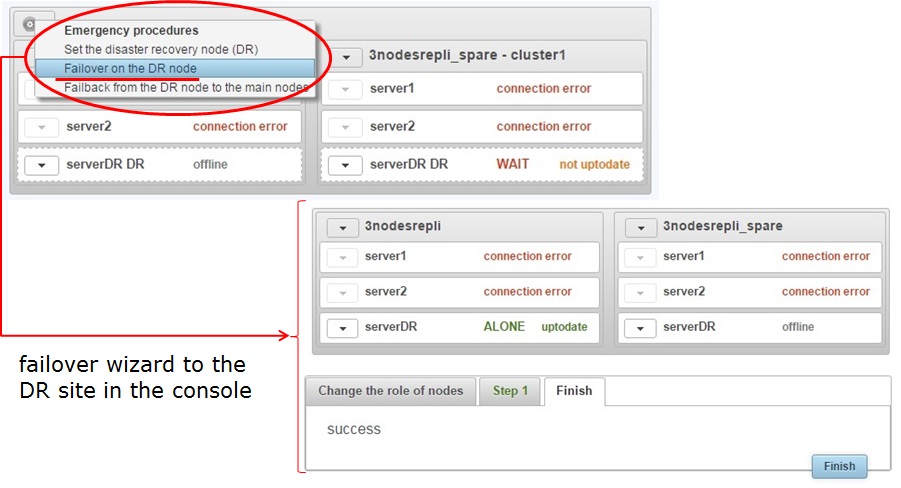

When server 1 and server 2 fail, the application failover to the DR site is possible with a manual procedure integrated in the administration console.

Windows File Replication and Windows Clustering between 3 Servers - Failover to the Disaster Recovery site

Failback from the disaster recovery site

When server 1 and server 2 come back, the application failback from the DR site to server 1 and server 2 is possible with a manual procedure in the administration console.

Windows File Replication and Windows Clustering between 3 Servers Failback
