KVM: the simplest high availability cluster between two redundant servers without shared disk

The solution for KVM

Evidian SafeKit brings high availability to KVM, the free hypervisor included in Linux, between two redundant servers.

This article explains how to implement quickly a KVM cluster without shared disk and without specific skills.

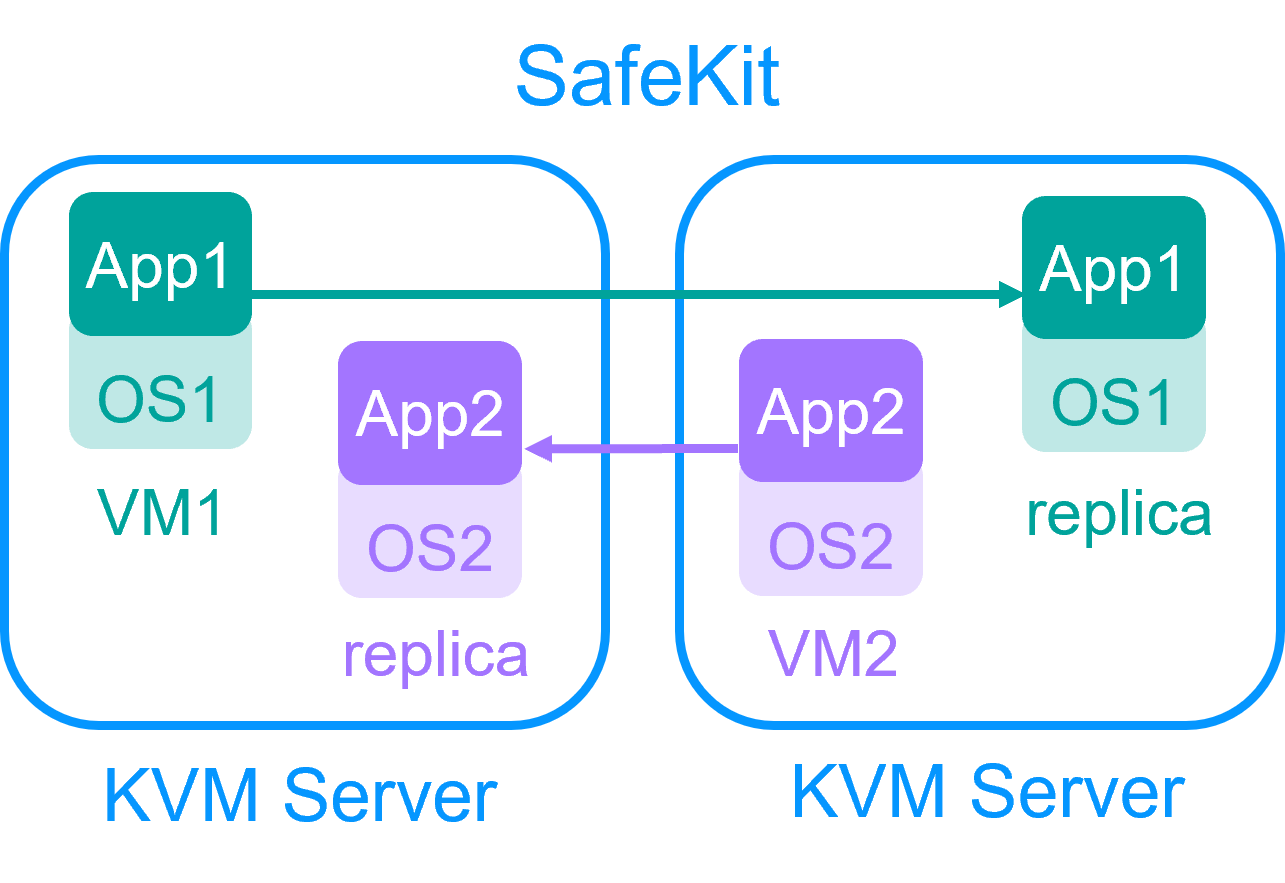

Several virtual machines can be replicated and can run on both Linux hypervisors with crossed replication and mutual takeover.

With this solution, there is no need to configure restart scripts and define virtual IP addresses for each application.

Redundancy at the application level

In this type of solution, only application data are replicated. And only the application is restared in case of failure. Restart scripts must be written to restart the application. This solution is platform agnostic and works with applications inside physical machines, virtual machines, in the Cloud.

We deliver application modules to implement redundancy at the application level. They are preconfigured for well known applications and databases. You can customize them with your own services, data to replicate, application checkers. And you can combine application modules to build advanced multi-level architectures.

Redundancy at the virtual machine level

In this type of solution, the full Virtual Machine (VM) is replicated (Application + OS). And the full VM is restarted in case of failure. The advantage is that there is no restart scripts to write per application and no virtual IP address to define. If you do not know how the application works, this is the best solution.

We deliver two modules for implementing redundancy at the virtual machine level: one for Hyper-V on Windows and one for KVM on Linux. Several VMs can be replicated and can run on both hypervisors with crossed replication and mutual takeover.

SafeKit installation guide with KVM

Step by step configuration

1. Prerequisites

The vm1 virtual machine image is in the file /var/lib/libvirt/images/vm1.qcow2. Before the SafeKit configuration, you have to make the following configuration.

On node 1:

Stop vm1:
```
virsh shutdown vm1
```
Create a vm1/ directory:
```
mkdir -p /var/lib/libvirt/images/vm1/
```
Copy the vm1 image to the new location:
```
cp -a /var/lib/libvirt/images/vm1.qcow2 /var/lib/libvirt/images/vm1/
```
The original vm1 image can be deleted as soon as tests with the new location are successfull.

Edit the vm1 configuration file:

EDITOR=vi virsh edit vm1

And change the line:

<source file='/var/lib/libvirt/images/vm1.qcow2'>

by :

<source file='/var/lib/libvirt/images/vm1/vm1.qcow2'>

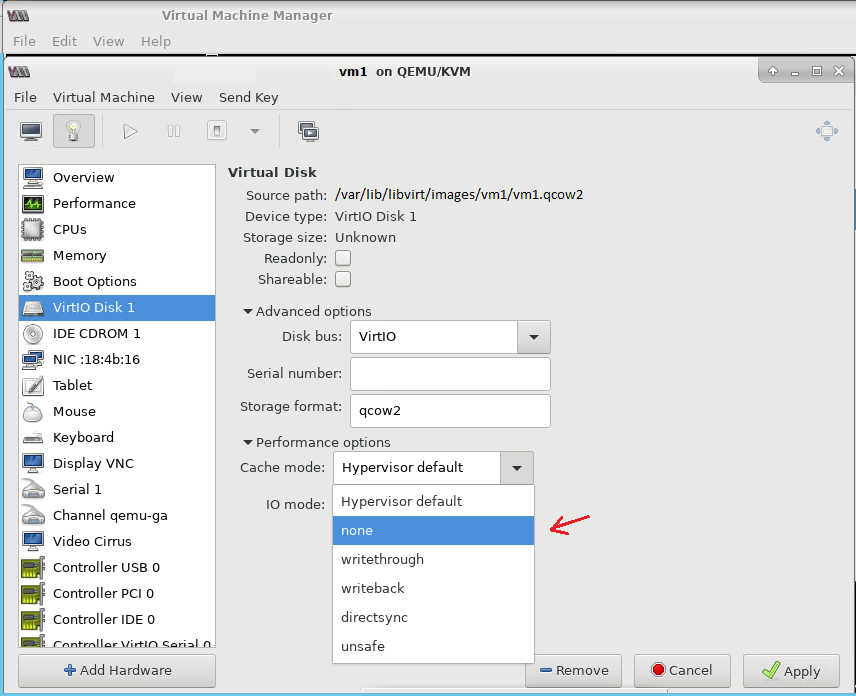

Set the cache option to 'none' in the same file, for data integrity in case of crash:

<disk type='file' device='disk'> <driver name='qemu' type=’qcow2’ cache='none'/>

Close the vm1 configuration file

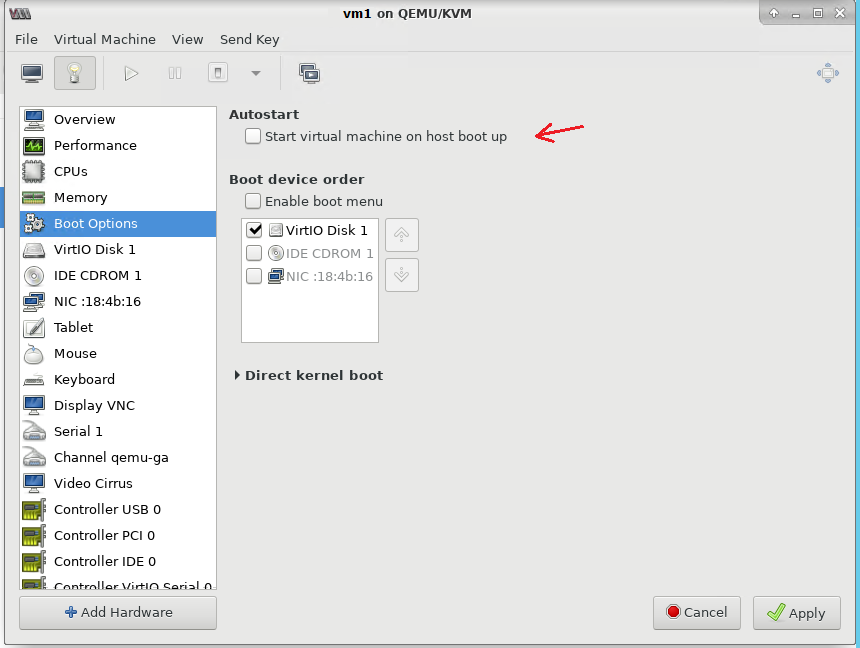

Disable vm1 automatic start:
```
virsh autostart vm1 --disable
```
Create a vm1.xml configuration file for vm1:
```
virsh dumpxml vm1 > vm1.xml
```

On node 2:

Copy the vm1.xml configuration file from node 1.

Note: whenever vm1 configuration is changed on node 1, you must reapply the new configuration on node 2.
Create vm1 but do not start it:
```
virsh define vm1.xml
```
Disable vm1 automatic start:
```
virsh autostart vm1 --disable
```
Create the directory for the image location:
```
mkdir -p /var/lib/libvirt/images/vm1/
```

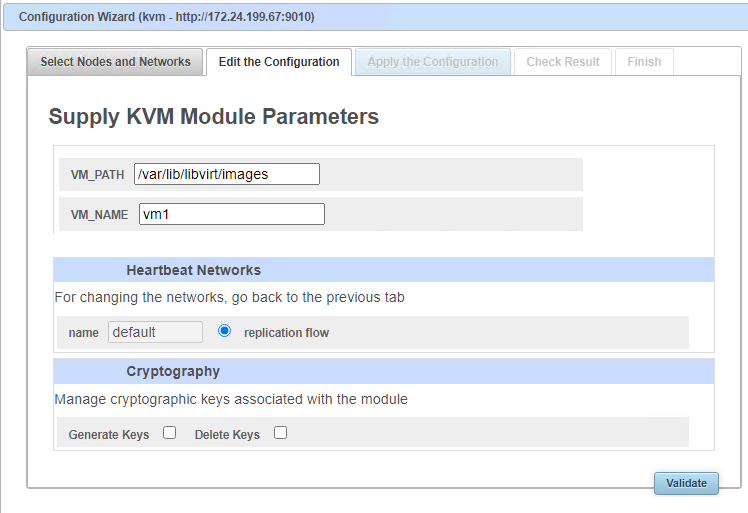

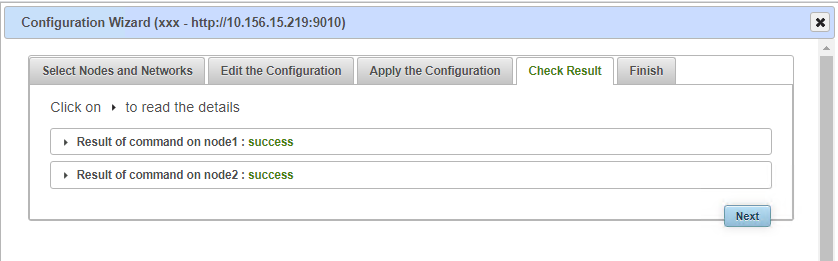

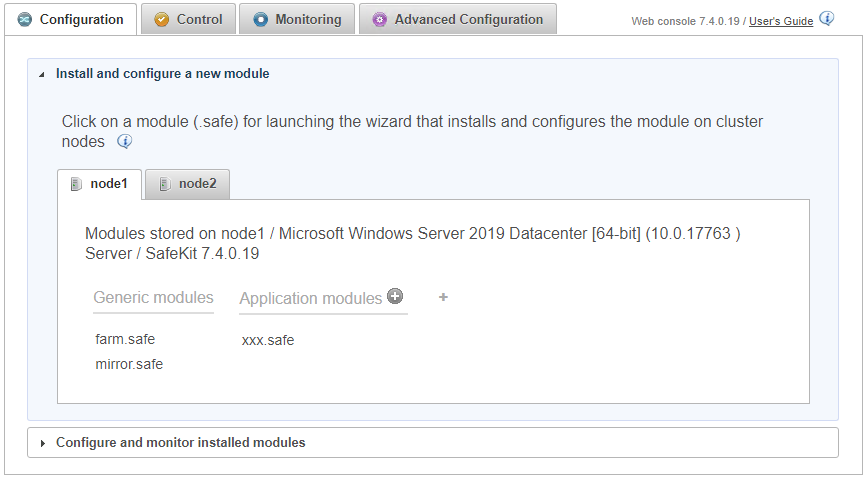

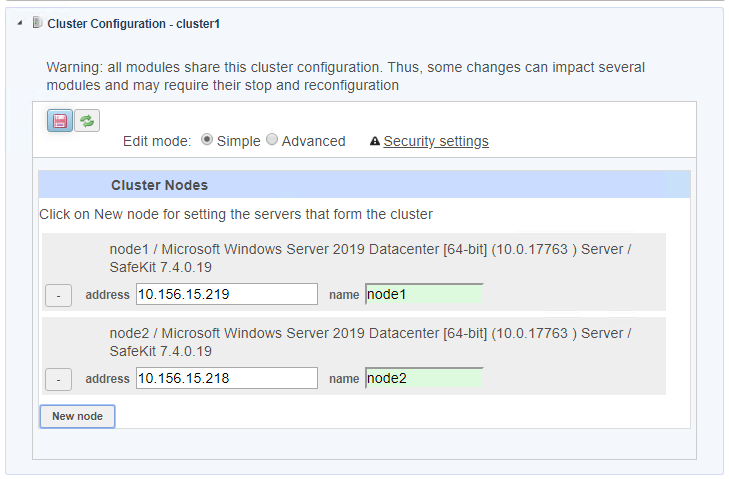

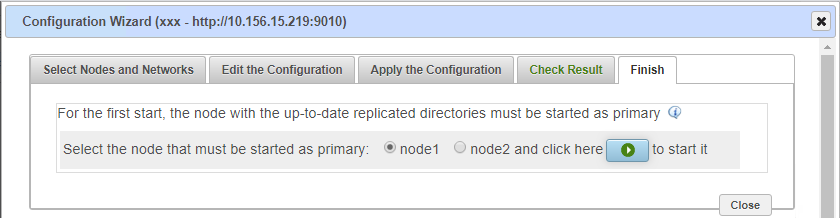

8. Wait for the transition to ALONE (green)

Node 1 should reach the ALONE (green) state, which means that the start_prim script has been executed on node 1.

If the status is ALONE (green) and vm1 is not started, check output messages of start_prim in the Application Log of node 1.

If node 1 does not reach ALONE (green) state, analyze why with the Module Log of node 1.

If the cluster is in WAIT (red) not uptodate - STOP (red) not uptodate state, stop the WAIT node and force its start as primary.

12. Testing

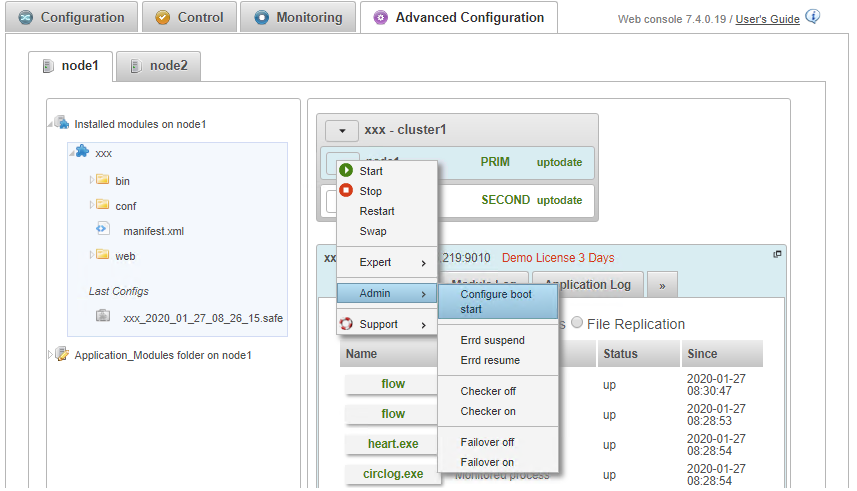

Stop the PRIM node by scrolling down its contextual menu and clicking Stop.
Verify that there is a failover on the SECOND node which should become ALONE (green).
Check the restart of vm1 with KVM tools.

If vm1 is not started on node 2 while the state is ALONE (green), check the output messages of the start_prim script in the Application Log of node 2.

If ALONE (green) is not reached, analyze why with the Module Log of node 2.

More information on tests in the User's Guide

13. Replicating snapshots

The directory that contains the snapshot xml files is:

/var/lib/libvirt/qemu/snapshot/%VM_NAME%

where VM_NAME is the name of the virtual machine (vm1).

Note: If no snapshot has been created, create one to generate the directory (else the SafeKit configuration will fail).

To replicate it:

Go to 'Advanced Configuration' in the SafeKit console
Edit conf/userconfig.xml file

Insert the lines below into the <rfs> section:

<replicated dir="/var/lib/libvirt/qemu/snapshot/%VM_NAME%" mode="read_only"> </replicated>

Save userconfig.xml
Use Apply the configuration in the console
Create snapshots on the PRIM node either through virt-manager or a command line:
```
virsh snapshot-create-as vm1 snapshot-name
```
Note: when creating a snapshot with a command line, you have to refresh the snapshot view into virt-manager.

Snapshots created on the PRIM node are operationnal on node 2 after failover, but not listed on node 2.

For importing a snapshot on node 2, you have to run the command:

virsh snapshot-create --redefine vm1 /var/lib/libvirt/qemu/snapshot/vm1/snapshot-name

The command line for listing all snapshots of vm1 is:
```
virsh snapshot-list vm1
```

Learn more

Internals

Internals of a SafeKit / KVM high availability cluster with synchronous replication and failover

Go to the Advanced Configuration tab in the console, for editing these files

Internal files of the Linux kvm.safe module

userconfig.xml (description in the User's Guide)

<!-- Mirror Architecture with Real Time File Replication and Failover for KVM -->

<!DOCTYPE safe>
<safe>
  <!-- Set value to the path of the virtual machines repository -->
  <macro name="VM_PATH" value="/var/lib/libvirt/images" />
  <!-- Set value to the name of the virtual machine -->
  <macro name="VM_NAME" value="vm1" />

 <service mode="mirror" defaultprim="alone" maxloop="3" loop_interval="24" failover="on">
  <!-- Heartbeat Configuration -->
  <heart>
    <heartbeat name="">
    </heartbeat>
  </heart>

  <!-- File Mirroring Configuration -->
  <rfs mountover="off" async="second" locktimeout="200" nbrei="3">
	<replicated dir="%VM_PATH%/%VM_NAME%" mode="read_only">
	</replicated>
	<!-- Uncomment for replicating the directory that contains snapshot xml files of the virtual machine
	<replicated dir="/var/lib/libvirt/qemu/snapshot/%VM_NAME%" mode="read_only">
	</replicated>
	-->
  </rfs>

  <!-- User scripts Configuration -->
  <user>
    <var name="VM_PATH" value="%VM_PATH%/%VM_NAME%" />
    <var name="VM_NAME" value="%VM_NAME%" />
  </user>

 </service>
</safe>

start_prim

#!/bin/sh
# Script called on the primary server for starting application

# For logging into SafeKit log use:
# $SAFE/safekit printi | printe "message"

# stdout goes into Application log
echo "Running start_prim $*"

res=0

# Start VM_NAME
virsh start $VM_NAME
state=$(virsh list --all | grep " $VM_NAME " | awk '{ print $3}')
if ([ "x$state" == "x" ]) ; then
	res=1
	$SAFE/safekit printe "$VM_NAME not found"
else
	let i=1
	while ( [ $i -le 5 ] && [ "x$state" != "xrunning" ]); do
      sleep 5
      state=$(virsh list --all | grep " $VM_NAME " | awk '{ print $3}')
      let i=i+1
	done
	if ([ "x$state" != "xrunning" ]) ; then
		res=1
		$SAFE/safekit printe "$VM_NAME start failed"
	fi
fi

if [ $res -ne 0 ] ; then
  $SAFE/safekit printe "start_prim failed"

  # uncomment to stop SafeKit when critical
  $SAFE/safekit stop -i "start_prim"
fi

stop_prim

#!/bin/sh
# Script called on the primary server for stopping application

# For logging into SafeKit log use:
# $SAFE/safekit printi | printe "message"

#----------------------------------------------------------
#
# 2 stop modes:
#
# - graceful stop
#   call standard application stop
#
# - force stop ($1=force)
#   kill application's processes
#
#----------------------------------------------------------

# stdout goes into Application log
echo "Running stop_prim $*"

# Stop VM_NAME
virsh shutdown $VM_NAME
state=$(virsh list --all | grep " $VM_NAME " | awk '{ print $3}')
if ([ "x$state" == "x" ]) ; then
	res=1
	$SAFE/safekit printe "$VM_NAME not found"
else
	let i=1
	while ( [ $i -le 5 ] && [ "x$state" == "xrunning" ]); do
		# Stop VM_NAME
		virsh shutdown $VM_NAME
		sleep 5
      		state=$(virsh list --all | grep " $VM_NAME " | awk '{ print $3}')
      		let i=i+1
	done
	if ([ "x$state" == "xrunning" ]) ; then
		res=1
		$SAFE/safekit printe "$VM_NAME stop failed"
	fi
fi

res=0

# default: no action on forcestop
[ "$1" = "force" ] && exit 0

# Fill with your application stop call

[ $res -ne 0 ] && $SAFE/safekit printe "stop_prim failed"
