Cloud: The Simplest Load Balancing Cluster with Failover on Windows and Linux
Evidian SafeKit
How the Evidian SafeKit software simply implements a load balancing cluster with failover on Windows and Linux in Cloud?
Evidian SafeKit provides load balancing and failover in Cloud. This article explains how to implement quickly a load balancing and failover cluster in Cloud.
A free trial is offered below with templates for a quick start in the Cloud.
Note that SafeKit is a generic product.
You can implement with the same product real-time replication and failover
of directories and services, databases, docker containers, full Hyper-V or KVM virtual machines, Cloud applications.
See other examples of mirror modules here.
This clustering solution is recognized as the simplest to implement by our customers and partners.
It is also a complete solution that solves
hardware failures (20% of problems), including the complete failure of a computer room,
software failures (40% of problems), including smooth upgrade server by server,
and human errors (40% of problems) thanks to its ease of use, including a very simple administration web console to configure, control and monitor clusters.

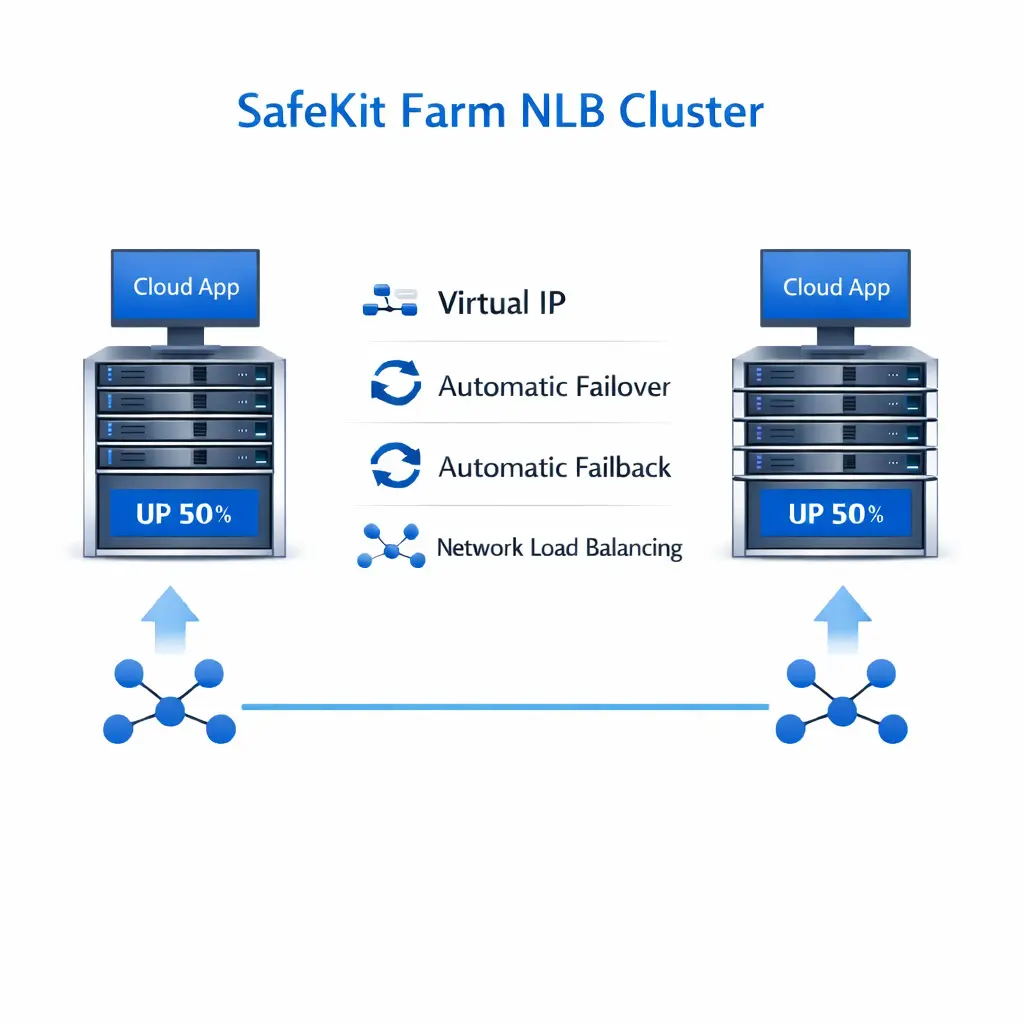

On the previous figure,
the servers are running in different availability zones
the critical application is running in all servers of the farm
users are connected to a virtual IP address which is configured in the Cloud load balancer
SafeKit provides a generic health check for the load balancer
When the farm module is stopped in a server, the health check returns NOK to the load balancer which stops the load balancing of requests to the server.
The same behavior happens when there is a hardware failure
in each server, SafeKit monitors the critical application with process checkers and custom checkers
SafeKit restarts automatically the critical application in a server when there is a software failure thanks to restart scripts
a connector for the SafeKit web console is installed in each server.
Thus, the load balancing cluster can be managed in a very simple way to avoid human errors
On the previous figure, the critical application is running on all UP servers.
Users are connected to a virtual IP address
which is defined at the load balancer level.
If a server fails, the SafeKit membership protocol reconfigures the cluster.
After the reconfiguration, only UP servers are answering OK to the load balancer for receiving traffic on the virtual IP address.
Free trial + installation a SafeKit farm cluster in the Cloud between several Windows or Linux servers
Template
Manual Installation
Troubleshooting
Advanced Configuration
Support
Internals
Installation of a load balancing cluster with failover in the Cloud on Windows or Linux
We deliver quick start templates for Amazon AWS, Microsoft Azure and Google GCP.
For other Clouds, Go to the Manual Installation tab.
Quick start templates in AWS, Azure and GCP
Click on the blue button to access the Evidian SafeKit quick start template
Cloud
Mirror cluster with real-time replication and failover
Farm cluster with load balancing and failover
Amazon AWS
Microsoft Azure
Google GCP
Manual installation on existing VMs in Cloud of a load balancing cluster with failover (Windows or Linux)
The load balancer must be configured to periodically send health packets to virtual machines.
For that, SafeKit provides a health check which runs inside the virtual machines and which
returns OK when the farm module state is UP (green)
returns NOT FOUND in all other states
You must configure the Cloud load balancer with:
HTTP protocol
port 9010, the SafeKit web server port
URL /var/modules/farm/ready.txt (if farm is the module name that you will deploy later)
For more information, see the configuration of the Cloud load balancer.
Configuration of the Cloud network security
The network security must be configured to enable communications for the following protocols and ports:
UDP - 4800 for the safeadmin service (between SafeKit nodes)
TCP – 9010 for the load-balancer health check and for the SafeKit web console running the http mode
TCP – 9001 to configure the https mode for the console
TCP – 9453 for the SafeKit web console running in the https mode
After the download of safekit_xx.bin package, execute it to extract the rpm and the safekitinstall script and then execute the safekitinstall script
Answer yes to firewall automatic configuration
The module farm.safe is delivered inside the package.
Configuration of SafeKit
The configuration is presented with the web console connected to 2 Windows servers but it is the same thing with 2 Linux servers.
Important: all the configuration must be done from a single browser.
It is recommended to configure the web console in the https mode by connecting to https://<IP address of 1 VM>:9453 (next image). In this case, you must configure before the https mode by using the wizard described in the User's Guide: see "11.1 HTTPS Quick Configuration with the Configuration Wizard".
Or you can use the web console in the http mode by connecting to http://<IP address of 1 VM>:9010 (next image).
Note that you can also make a configuration with DNS names, especially if the IP addresses are not static.
Enter IP address of the first node and click on Confirm (next image)
Click on New node and enter IP address of the second node (next image)
Click on the red floppy disk to save the configuration (previous image)
In the Configuration tab, click on farm.safe then enter farm as the module name and Confirm (next images with farm instead of xxx)
Click on Validate (next image)
Do not configure a virtual IP address (next image) because this configuration is already made in the Cloud load balancer. This section is useful for on-premise configuration only.
If a process is defined in the Process Checker section (next image), it will be monitored with the action restart in case of failure. The services will be stopped an restarted locally on the local server if this process disappears from the list of running processes.
After 3 unsuccessful local restarts, the module is stopped on the local server. As a consequence, the health check answers NOT FOUND to the Cloud load balancer and the load balancing is reconfigured to load balance the traffic on the remaining servers of the farm.
start_both and stop_both (next image) contain the start and the stop of services.
Click on Validate (previous image)
Click on Configure (previous image)
Check the success green message on both servers and click on Next (previous image)
Start the cluster on both nodes (previous image).
Check that the status becomes UP (green) - UP (green) (next image).
The cluster is operational with services running on both UP nodes (previous image).
Be careful, components which are clients of the services must be configured with the virtual IP address. The configuration can be made with a DNS name (if a DNS name has been created and associated with the virtual IP address).
Tests
Check with Windows Microsoft Management Console (MMC) or with Linux command lines that the services are started on both UP nodes. Put services with Boot Startup Type = Manual (SafeKit controls start of services).
Stop one UP node by scrolling down the menu of the node and by clicking on Stop. Check that the load balancing is reconfigured with only the other node taking all TCP connections. And check that the services are stopped on the STOP node with Windows Microsoft Management Console (MMC) or with Linux command lines.
Configure boot start (next image on the right side) configures the automatic boot of the module when the server boots. Do this configuration on both nodes once the load balancing and failover solution is correctly running.
Note that for synchronizing SafeKit at boot and at shutdown on Windows, we assume that a command line has been run on both nodes during installation as administrator: .\addStartupShutdown.cmd in C:\safekit\private\bin
(otherwise dot it now).
For reading the SafeKit logs, go to the Troubleshooting tab
For editing userconfig.xml, start_both and stop_both, go to the Advanced Configuration tab
Troubleshooting of a SafeKit / load balancing cluster with failover
Module log
Read the module log to understand the reasons of a failover, of a waiting state on the availability of a resource etc...
To see the module log of node 1 (next image):
click on the Control tab
click on node 1/UP (it becomes blue) on the left side
click on Module Log
click on the Refresh icon (green arrows) to update the console
click on the floppy disk to save the module log in a .txt file and to analyze in a text editor
Repeat the same operation to see the module log of node 2.
Application log
Read the application log to see the output messages of the stat_both and stop_both restart scripts.
To see the application log of node 1 (next image):
click on the Control tab
click on node 1/UP (it becomes blue) on the left side to select the server
click on Application Log to see messages when starting and stopping services
click on the Refresh icon (green arrows) to update the console
click on the floppy disk to save the application log in a .txt file and to analyze in a text editor
Repeat the same operation to see the application log of node 2.
Advanced configuration of a SafeKit / load balancing cluster with failover
Advanced configuration
In Advanced Configuration tab (next image), you can edit internal files of the module: bin/start_both and bin/stop_both and conf/userconfig.xml (next image on the left side). If you make change in the internal files here, you must apply the new configuration by a right click on the blue icon/xxx on the left side (next image): the interface will allow you to redeploy the modified files on both servers.
For an example of userconfig.xml, start_both and stop_both, go to the Internals tab
Support of a SafeKit / load balancing cluster with failover
Support
For getting support on the call desk of https://support.evidian.com, get 2 Snaphots (2 .zip files), one for each server and upload them in the call desk tool (next image).
