PostgreSQL: the simplest high availability cluster between two redundant servers

With the synchronous replication and automatic failover provided by Evidian SafeKit

How the Evidian SafeKit software simply implements a PostgreSQL high availability cluster?

The solution for PostgreSQL

Evidian SafeKit brings high availability to PostgreSQL between two redundant servers with real-time replication of data and automatic failover.

This article explains how to implement quickly a PostgreSQL cluster without shared disk and without specific skills.

>> SafeKit installation guide with PostgreSQL

A generic product

Note that SafeKit is a generic product on Windows and Linux.

You can implement with the same product real-time replication and failover of any file directory and service, database, complete Hyper-V or KVM virtual machines, Docker, Kubernetes , Cloud applications.

A complete solution

SafeKit solves:

  • hardware failures (20% of problems), including the complete failure of a computer room,
  • software failures (40% of problems), including restart of critical processes,
  • and human errors (40% of problems) thanks to its ease of use and its web console.

SafeKit: an ideal solution for a partner application

This platform agnostic solution is ideal for a partner with a critical application and who wants to provide a redundancy and high availability option easy to deploy to many customers.

This clustering solution is also recognized as the simplest to implement by our partners.

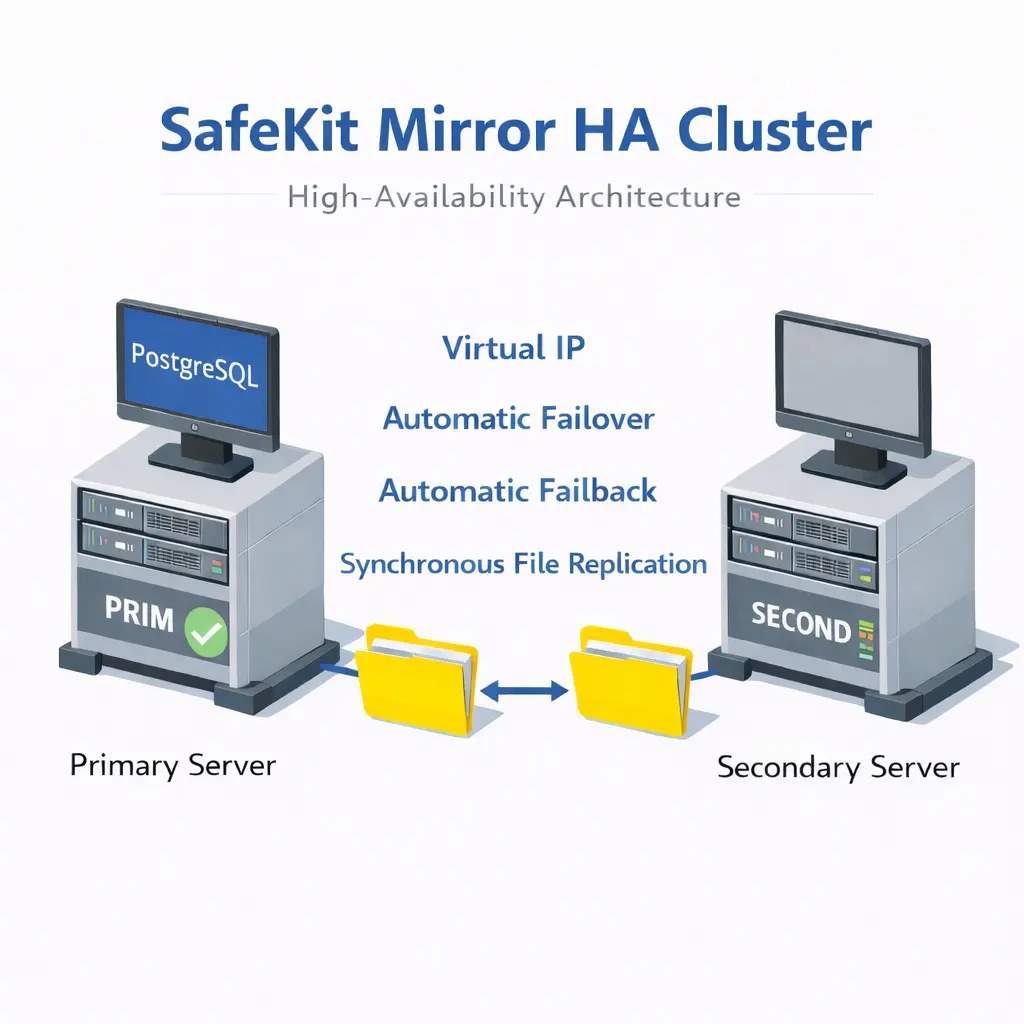

How the SafeKit mirror cluster works with PostgreSQL?

Step 1. Real-time replication

Server 1 (PRIM) runs the PostgreSQL application. Clients are connected to a virtual IP address. SafeKit replicates in real time modifications made inside files through the network.

File replication at byte level in a mirror PostgreSQL cluster

The replication is synchronous with no data loss on failure contrary to asynchronous replication.

You just have to configure the names of directories to replicate in SafeKit. There are no pre-requisites on disk organization. Directories may be located in the system disk.

Step 2. Automatic failover

When Server 1 fails, Server 2 takes over. SafeKit switches the virtual IP address and restarts the PostgreSQL application automatically on Server 2.

The application finds the files replicated by SafeKit uptodate on Server 2. The application continues to run on Server 2 by locally modifying its files that are no longer replicated to Server 1.

Failover of PostgreSQL in a mirror cluster

The failover time is equal to the fault-detection time (30 seconds by default) plus the application start-up time.

Step 3. Automatic failback

Failback involves restarting Server 1 after fixing the problem that caused it to fail.

SafeKit automatically resynchronizes the files, updating only the files modified on Server 2 while Server 1 was halted.

Failback in a mirror PostgreSQL cluster

Failback takes place without disturbing the PostgreSQL application, which can continue running on Server 2.

Step 4. Back to normal

After reintegration, the files are once again in mirror mode, as in step 1. The system is back in high-availability mode, with the PostgreSQL application running on Server 2 and SafeKit replicating file updates to Server 1.

Return to normal operation in a mirror PostgreSQL cluster

If the administrator wishes the application to run on Server 1, he/she can execute a "swap" command either manually at an appropriate time, or automatically through configuration.

Choose between redundancy at the application level or at the virtual machine level

Redundancy at the application level

In this type of solution, only application data are replicated. And only the application is restared in case of failure. Restart scripts must be written to restart the application. This solution is platform agnostic and works with applications inside physical machines, virtual machines, in the Cloud.

Application HA - redundancy at the application level

We deliver application modules to implement redundancy at the application level (like the PostgreSQL module provided in the free trial below). They are preconfigured for well known applications and databases. You can customize them with your own services, data to replicate, application checkers. And you can combine application modules to build advanced multi-level architectures.

Redundancy at the virtual machine level

In this type of solution, the full Virtual Machine (VM) is replicated (Application + OS). And the full VM is restarted in case of failure. The advantage is that there is no restart scripts to write per application and no virtual IP address to define. If you do not know how the application works, this is the best solution.

VM HA - redundancy at the virtual machine level

We deliver two modules for implementing redundancy at the virtual machine level: one for Hyper-V on Windows and one for KVM on Linux. Several VMs can be replicated and can run on both hypervisors with crossed replication and mutual takeover.

Typical usage with SafeKit

Why a replication of a few Tera-bytes?

Resynchronization time after a failure (step 3)

  • 1 Gb/s network ≈ 3 Hours for 1 Tera-bytes.
  • 10 Gb/s network ≈ 1 Hour for 1 Tera-bytes or less depending on disk write performances.

Alternative

  • For a large volume of data, use external shared storage with a hardware clustering solution.
  • More expensive, more complex.

Why a replication < 1,000,000 files?

  • Resynchronization time performance after a failure (step 3).
  • Time to check each file between both nodes.

Alternative

  • Put the many files to replicate in a virtual hard disk / virtual machine.
  • Only the files representing the virtual hard disk / virtual machine will be replicated and resynchronized in this case.

Why a failover < 25 replicated VMs?

  • Each VM runs in an independent mirror module.
  • Maximum of 25 mirror modules running on the same cluster.

Alternative

  • Use an external shared storage and another VM clustering solution.
  • More expensive, more complex.

Why a LAN/VLAN network between remote sites?

Alternative

  • Use a load balancer for the virtual IP address if the 2 nodes are in 2 subnets (supported by SafeKit, especially in the cloud).
  • Use backup solutions with asynchronous replication for high latency network.

SafeKit free trial + module for PostgreSQL

SafeKit installation guide for PostgreSQL

Prerequisites

  • You need PostgreSQL installed on 2 nodes (virtual machines or physical servers).
  • On Windows, with Windows services manager, put PostgreSQL services with Boot Startup Type = Manual on both nodes.

    SafeKit controls start of PostgreSQL services in the restart scripts. Edit the restart scripts during the configuration to check if you have put all services in Manual boot including the new ones that you can add.

Package installation on Windows

  • Download the free version of SafeKit on 2 Windows nodes.

    Note: the free version includes all SafeKit features. At the end of the trial, you can activate permanent license keys without uninstalling the package.

  • To open the Windows firewall, on both nodes start a command line as administrator, goto C:\safekit\private\bin and type

    .\firewallcfg.cmd add
  • For synchronizing SafeKit at boot and at shutdown, on both nodes start a command line as administrator, goto C:\safekit\private\bin and type only once

    .\addStartupShutdown.cmd

Module installation on Windows

  • Download the postgresql.safe module.

    The module is free. It contains the files userconfig.xml and the restart scripts.

  • Put postgresql.safe under C:\safekit\Application_Modules\demo (create the demo directory if it does not exist).

Package installation on Linux

  • Install the free version of SafeKit on 2 Linux nodes.

    Note: the free trial includes all SafeKit features. At the end of the trial, you can activate permanent license keys without uninstalling the package.

  • After the download of safekit_xx.bin package, execute it to extract the rpm and the safekitinstall script and then execute the safekitinstall script
  • Answer yes to firewall automatic configuration

Module installation on Linux

  • Download the postgresql.safe module.

    The module is free. It contains the files userconfig.xml and the restart scripts.

  • Put postgresql.safe under /opt/safekit/Application_Modules/demo/ (create the demo directory if it does not exist).
