Linux: The Simplest Load Balancing Cluster with Failover

Evidian SafeKit

How the Evidian SafeKit software simply implements Linux load balancing and failover without network load balancers or dedicated proxy servers

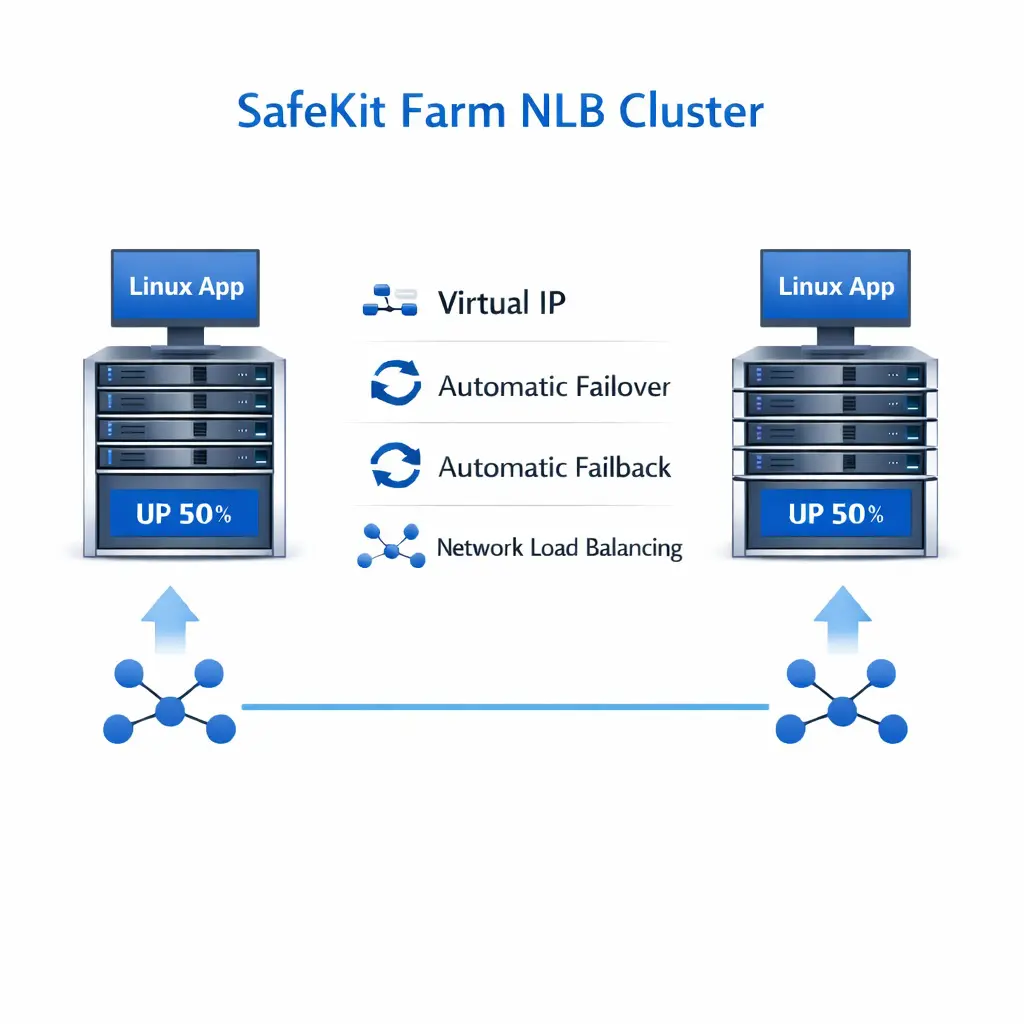

How the Evidian SafeKit farm cluster implements Linux load balancing and failover?

Evidian SafeKit brings load balancing and failover to Linux. This article explains how to implement quickly a Linux cluster without network load balancers or dedicated proxy servers. SafeKit is installed directly on the Linux servers. The high availabity module farm.safe and a free trial are offered in the Installation tab below.

Note that SafeKit is a generic product. You can implement with the same product real-time replication and failover of directories and services, databases, docker containers, full Hyper-V or KVM virtual machines, Cloud applications. See other examples of mirror modules here.

This clustering solution is recognized as the simplest to implement by our customers and partners. It is also a complete solution that solves

  • hardware failures (20% of problems), including the complete failure of a computer room,
  • software failures (40% of problems), including smooth upgrade server by server,
  • and human errors (40% of problems) thanks to its ease of use, including a very simple administration web console to configure, control and monitor clusters.

On the previous figure, Linux services are running of the 3 servers. Users are connected to a virtual IP address which is configured locally on each server. The input traffic for the virtual IP address is received by all the servers and split among them by a filter inside each server's kernel.

The network load balancing algorithm inside the filter is based on the identity of the client packets (client IP address, client TCP port). Depending on the identity of the client packet input, only one filter in a server accepts the packet; the other filters in other servers reject it.

Once a packet is accepted by the filter on a server, only the CPU and memory of this server are used by Linux services that responds to the request of the client. The output messages are sent directly from the Linux server to the client.

If a server fails, the SafeKit membership protocol reconfigures the filters in the network load balancing cluster to re-balance the traffic on the remaining available servers.

Note that that you can deploy several modules on the same cluster. Each module will have its own virtual IP address. For example, you can implement a mixed of farm and mirror modules.

Free trial + farm.safe module and step by step installation procedure of SafeKit load balancing on several Linux servers

Installation of a SafeKit / Linux load balancing cluster with failover

Prerequisites

  • you need the application that you want to put in farme installed on 2 nodes or more (virtual machines or physical servers)

Package installation on Linux

  • Install the free version of SafeKit on 2 Linux nodes (or more)
  • After the download of safekit_xx.bin package, execute it to extract the rpm and the safekitinstall script and then execute the safekitinstall script
  • Answer yes to firewall automatic configuration
  • The module farm.safe is delivered inside the package.

Note   User's guide available here

Go to the Configuration tab

Configuration of a SafeKit / Linux load balancing cluster with failover

Configuration instructions

The configuration is presented with 2 nodes but it can be made with more than 2 nodes.

Warning  Important: all the configuration is made from a single browser.

Launch the web console in a browser on one node by connecting to http://localhost:9010 (next image). You can also run the console in a browser on an external workstation by connecting to the physical IP address of one node.

Start the SafeKit web console for configuring Linux

Note   To secure the web console, see 11. Securing the SafeKit web console in the User's Guide.

Enter IP address of the first node and click on Confirm (next image)

SafeKit web console - first Linux node in the cluster

Click on New node and enter IP address of the second node (next image)
Then click on the red floppy disk to save the configuration (next image)

SafeKit web console - second Linux node in the cluster

Note   In the previous image, the save operation put the IP addresses in the file /var/safekit/cluster/cluster.xml and apply the distributed command /opt/safekit/safekit –H "*" -G which configures node 1 and node 2. So do not redo this operation on the other node. Check the connectivity and firewall between both nodes for troubleshooting.

In the Configuration tab, click on farm.safe (xxx.safe in the next image) then  enter farm as the module name and Confirm (the console finds farm.safe in the demo/ directory that you previously filled in the Installation tab)

SafeKit web console - start configuration of Linux SafeKit web console - enter Linux module name

Click on Validate (next image)

SafeKit web console - enter Linux module nodes

Set the virtual IP address of the cluster, the TCP port of the service to load balance and the criterion on source IP address or source TCP port (next image).

A virtual IP address is a new unused IP address in the same IP network (same subnet) as the IP addresses of the two nodes. The load balancing will be made on the virtual IP address/TCP port according the criterion. This article explains difference between source IP address and source TCP port.

SafeKit web console - enter Linux parameters

For information:

  • on the previous image, if a proc process is defined in the Process checker section, it will be monitored with the action restart in case of failure. The services will be stopped an restarted locally on the local server if this process disappears from the list of running processes. After 3 unsuccessful local restarts, the module is stopped on the local server and the load balancing filters are reconfigured to load balance the traffic on the remaining servers of the farm.
  • start_both and stop_both (previous image) contain the start and the stop of Linux services. Check that the names of services in these scripts are those installed on your both machines (else modify them in the scripts).

Click on Validate (previous image)

SafeKit web console - stop the Linux module before configuration

Click on Configure (previous image)

SafeKit web console - check the success green messages of the Linux configuration

Check the success green message on both servers and click on Next (previous image)

SafeKit web console - start the Linux cluster on both nodes

Start the cluster on both nodes (previous image). Check that the status becomes UP (green) - UP (green) (next image).

SafeKit web console - Linux cluster started

The cluster is operational with Linux services running on both UP nodes (previous image).

Be careful, components which are clients of the Linux services must be configured with the virtual IP address. The configuration can be made with a DNS name (if a DNS name has been created and associated with the virtual IP address).

Tests

Check with Linux command lines that the Linux services have been started by start_both on both UP nodes. Put Linux services with Boot Startup Type = Manual (SafeKit controls start of Linux services).

Stop one UP node by scrolling down the menu of the node and by clicking on Stop. Check that the load balancing is reconfigured with only the other node taking all TCP connections. And check with Linux command lines that the Linux services have been stopped by stop_both on the STOP node.

More information on tests in the User's Guide

Automatic start of the module at boot

Configure boot start (next image on the right side) configures the automatic boot of the module when the server boots. Do this configuration on both nodes once the Linux load balancing and failover solution is correctly running.

SafeKit web console - automatic boot of the Linux module

For reading the SafeKit logs, go to the Troubleshooting tab

For editing userconfig.xml, start_both and stop_both, go to the Advanced Configuration tab

Troubleshooting of a SafeKit / Linux load balancing cluster with failover

Module log

Read the module log to understand the reasons of a failover, of a waiting state on the availability of a resource etc...
To see the module log of node 1 (next image):

  • click on the Control tab
  • click on node 1/UP (it becomes blue) on the left side
  • click on Module Log
  • click on the Refresh icon (green arrows) to update the console
  • click on the floppy disk to save the module log in a .txt file and to analyze in a text editor

Repeat the same operation to see the module log of node 2.

SafeKit web console - Module Log of the Linux node 1

Application log

Read the application log to see the output messages of the stat_both and stop_both restart scripts.
To see the application log of node 1 (next image):

  • click on the Control tab
  • click on node 1/UP (it becomes blue) on the left side to select the server
  • click on Application Log to see messages when starting and stopping Linux services
  • click on the Refresh icon (green arrows) to update the console
  • click on the floppy disk to save the application log in a .txt file and to analyze in a text editor

Repeat the same operation to see the application log of node 2.

SafeKit web console - Application Log of Linux node 1

More information on troubleshooting in the User's Guide

For support, go to the Support tab

Advanced configuration of a SafeKit / Linux load balancing cluster with failover

Advanced configuration

In Advanced Configuration tab (next image), you can edit internal files of the module: bin/start_both and bin/stop_both and conf/userconfig.xml (next image on the left side). If you make change in the internal files here, you must apply the new configuration by a right click on the blue icon/xxx on the left side (next image): the interface will allow you to redeploy the modified files on both servers.

SafeKit web console - Advanced configuration of the Linux module

More information on userconfig.xml in the User's Guide

For an example of userconfig.xml, start_both and stop_both, go to the Internals tab

Support of a SafeKit / Linux load balancing cluster with failover

Support

For getting support on the call desk of https://support.evidian.com, get 2 Snaphots (2 .zip files), one for each server and upload them in the call desk tool (next image).

SafeKit web console - Linux snaphots for support

More information on support in the User's Guide

Internal files of a SafeKit / Linux load balancing cluster with failover

Go to the Advanced Configuration tab, for editing these files

Internal files of the Linux farm.safe module

userconfig.xml (description in the User's Guide)
<!DOCTYPE safe>
<safe>
<service mode="farm" maxloop="3" loop_interval="24">
  <!-- Farm topology configuration for the membership protocol -->
  <!-- Names or IP addresses on the default network are set during initialization in the console -->
  <farm>
    <lan name="default" />
  </farm>
  <!-- Virtual IP Configuration -->
  <!-- Replace
     * VIRTUAL_IP_ADDR_TO_BE_DEFINED by the IP address of your virtual server
  -->
  <vip>
    <interface_list>
      <interface check="on" arpreroute="on">
        <virtual_interface type="vmac_directed">
          <virtual_addr addr="VIRTUAL_IP_ADDR_TO_BE_DEFINED" where="alias"/>
        </virtual_interface>
      </interface>
    </interface_list>
    <loadbalancing_list>
      <group name="Windows_Appli">
        <!-- Set load-balancing rule on the TCP port of the service to load balance -->
        <rule port="TCP_PORT_TO_BE_DEFINED" proto="tcp" filter="on_addr"/>
      </group>
    </loadbalancing_list>
  </vip>
  <!-- TCP Checker Configuration -->
  <!-- Replace
     * VIRTUAL_IP_ADDR_TO_BE_DEFINED by the IP address of your virtual server
     * TCP_PORT_TO_BE_DEFINED by the TCP port of the service to check
  -->
  <check>
    <tcp ident="Check_Appli" when="both">
      <to
         addr="VIRTUAL_IP_ADDR_TO_BE_DEFINED"
         port="TCP_PORT_TO_BE_DEFINED"
         interval="10"
         timeout="5"
       />
    </tcp>
  </check>
  <!-- User scripts activation -->
  <user nicestoptimeout="300" forcestoptimeout="300" logging="userlog" />
</service>
</safe>
start_both
#!/bin/sh
# Script called on the primary server for starting application

# For logging into SafeKit log use:
# $SAFE/safekit printi | printe "message"

# stdout goes into Application log
echo "Running start_both $*"

res=0

# Fill with your application start call

if [ $res -ne 0 ] ; then
  $SAFE/safekit printe "start_both failed"

  # uncomment to stop SafeKit when critical
  # $SAFE/safekit stop -i "start_both"
fi
stop_both
#!/bin/sh
# Script called on the primary server for stopping application

# For logging into SafeKit log use:
# $SAFE/safekit printi | printe "message"

#----------------------------------------------------------
#
# 2 stop modes:
#
# - graceful stop
#   call standard application stop
#
# - force stop ($1=force)
#   kill application's processes
#
#----------------------------------------------------------

# stdout goes into Application log
echo "Running stop_both $*"

res=0

# default: no action on forcestop
[ "$1" = "force" ] && exit 0

# Fill with your application stop call

[ $res -ne 0 ] && $SAFE/safekit printe "stop_both failed"
